AK700ST 4000-Lumen 4K Short Throw Laser Golf Simulator Projector

$4,999.00
Quantity:

Seamless Swinging and Movie Transitions

The AK700ST is BenQ's dedicated golf simulation projector, offering cinematic-grade 4K resolution and a unique remote control for easy setup. Eliminate the hassle of adjusting screen ratios and effortlessly enjoy a complete 4K entertainment experience with family and friends.

Building Your Golf Theater Combo?

Common Setup Issues in Your Golf Theater

Projector Placement Challenge

Identifying the projector throw ratio, and moving the slider rail for the optimal position takes time.

Complex Process to Fill Up the Screen

With math calculation, go into graphic card setting, and back and forth to settle down.

Difficulty with Focus Adjustment

Most projectors had their focus ring on the projector itself. Climbing up the ladder for manual focus is un-user-friendly.

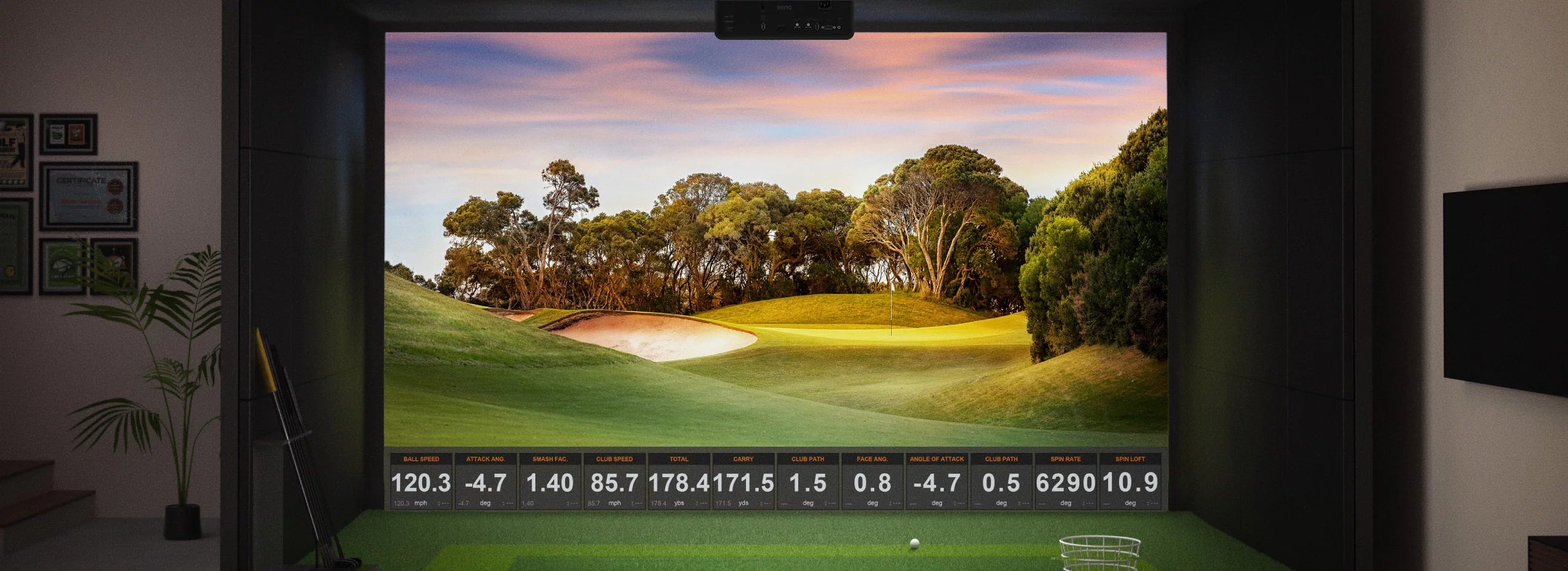

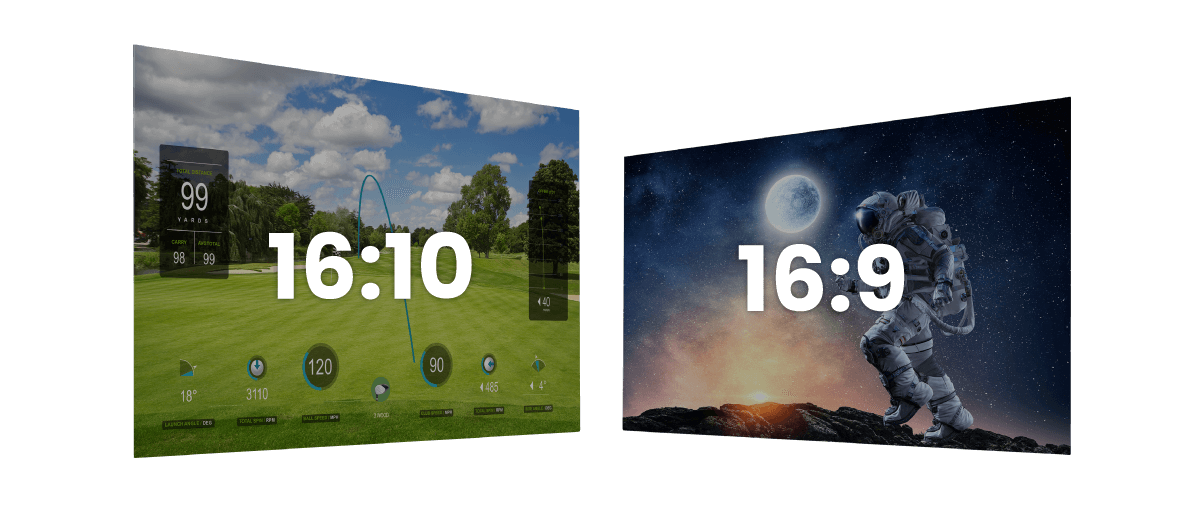

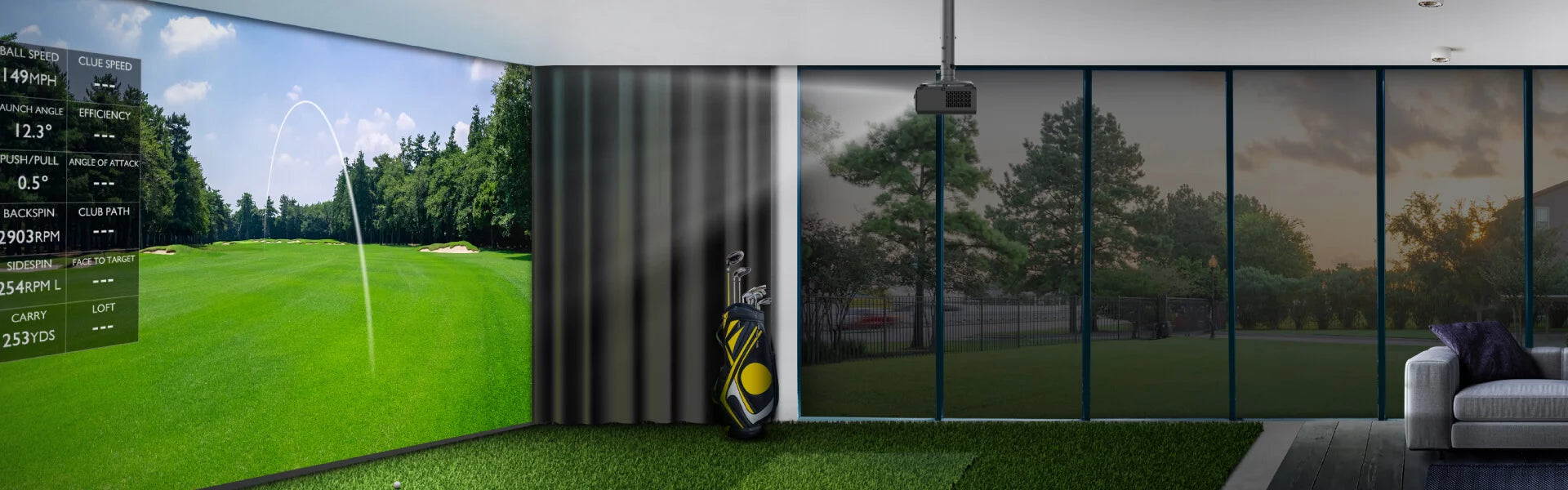

One Projector, Two Experiences

With the BenQ AK700ST, your all-in-one projection solution, effortlessly switch aspect ratios with just one button, ensuring full-screen enjoyment without wasting time on settings.

Golf

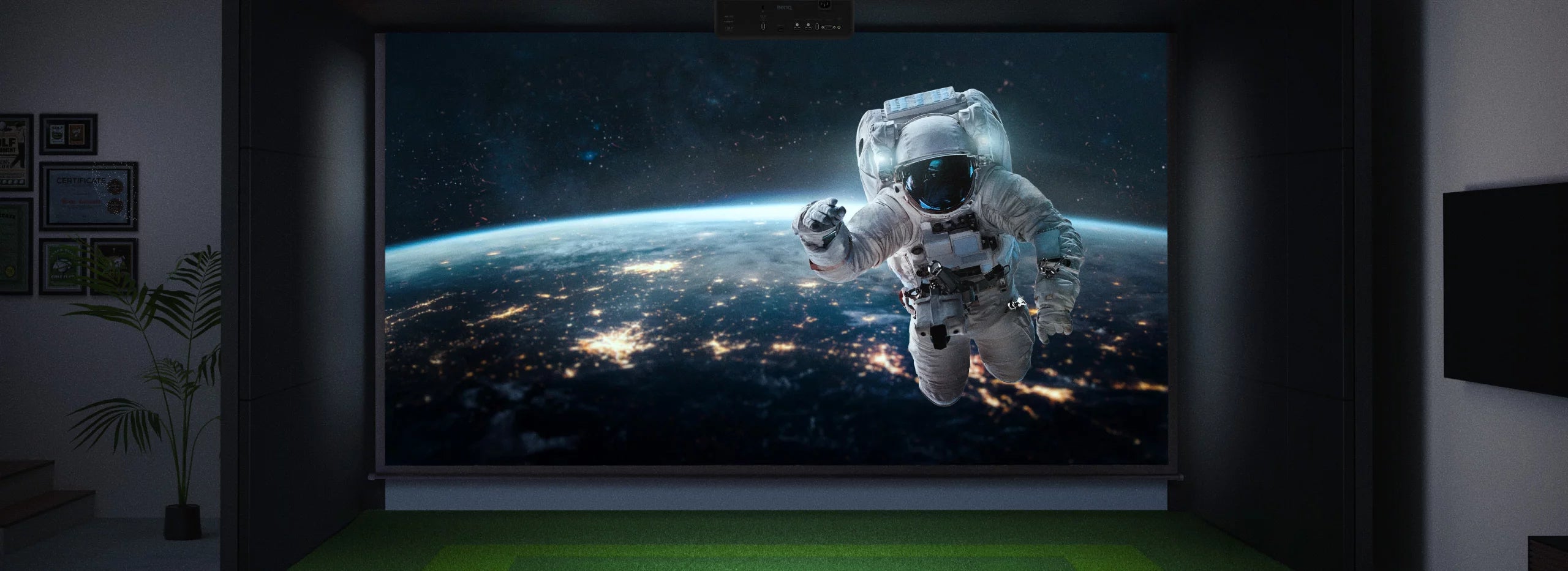

Movie

Auto Screen Fit

Automatically detects and adjusts to your impact screen’s aspect ratio, maintaining optimal resolution.

*Note:

  • Auto Screen Fit supports 16:9, 16:10, 4:3, and 1:1 aspect ratios.
  • For non-standard aspect ratios, please view the video and adjust via graphic card settings.
  • Enclosure or screen black border requires at least 6 cm of width.

Check out the how-to video >

Quick Focus

Press the Quick Focus button on the remote control and make slight manual adjustments to effortlessly deliver clear images.

Short Throw Lens Designed for Golf Sim

Swing safely without fear of damage or shadows.

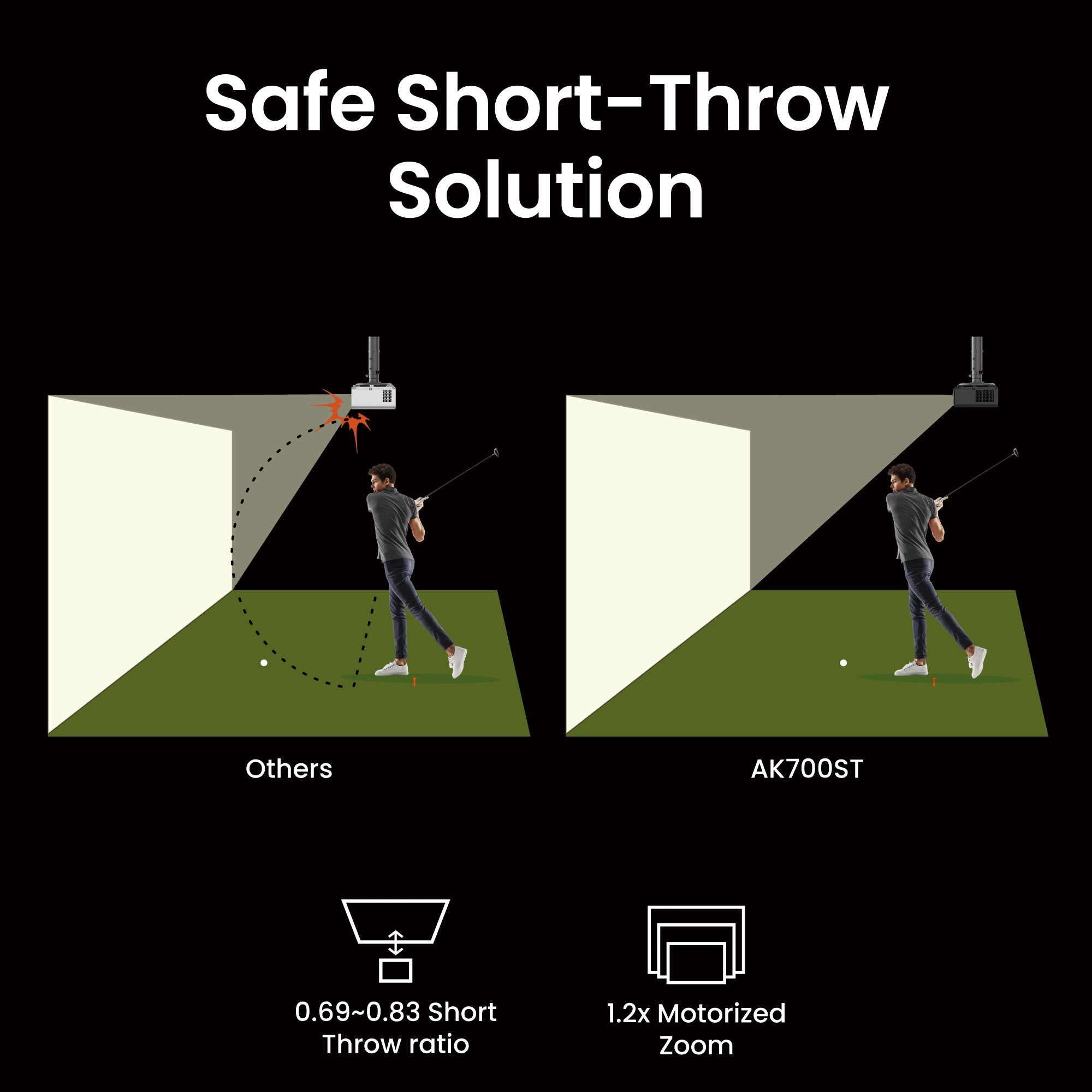

Safe Short-Throw Solution

The AK700ST enables a safe and shadow-free location for your swing.

Subheading

Gallery

Traditional short throw projectors: Positioned too close to the hitting area, creates potential collision risks.

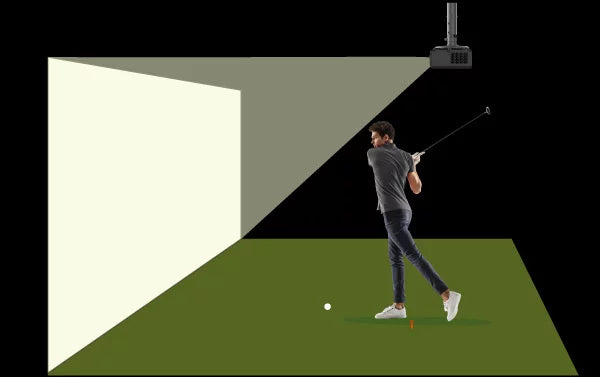

AK700ST: Positioned behind the hitter, lowering collision risks and eliminating shadows.

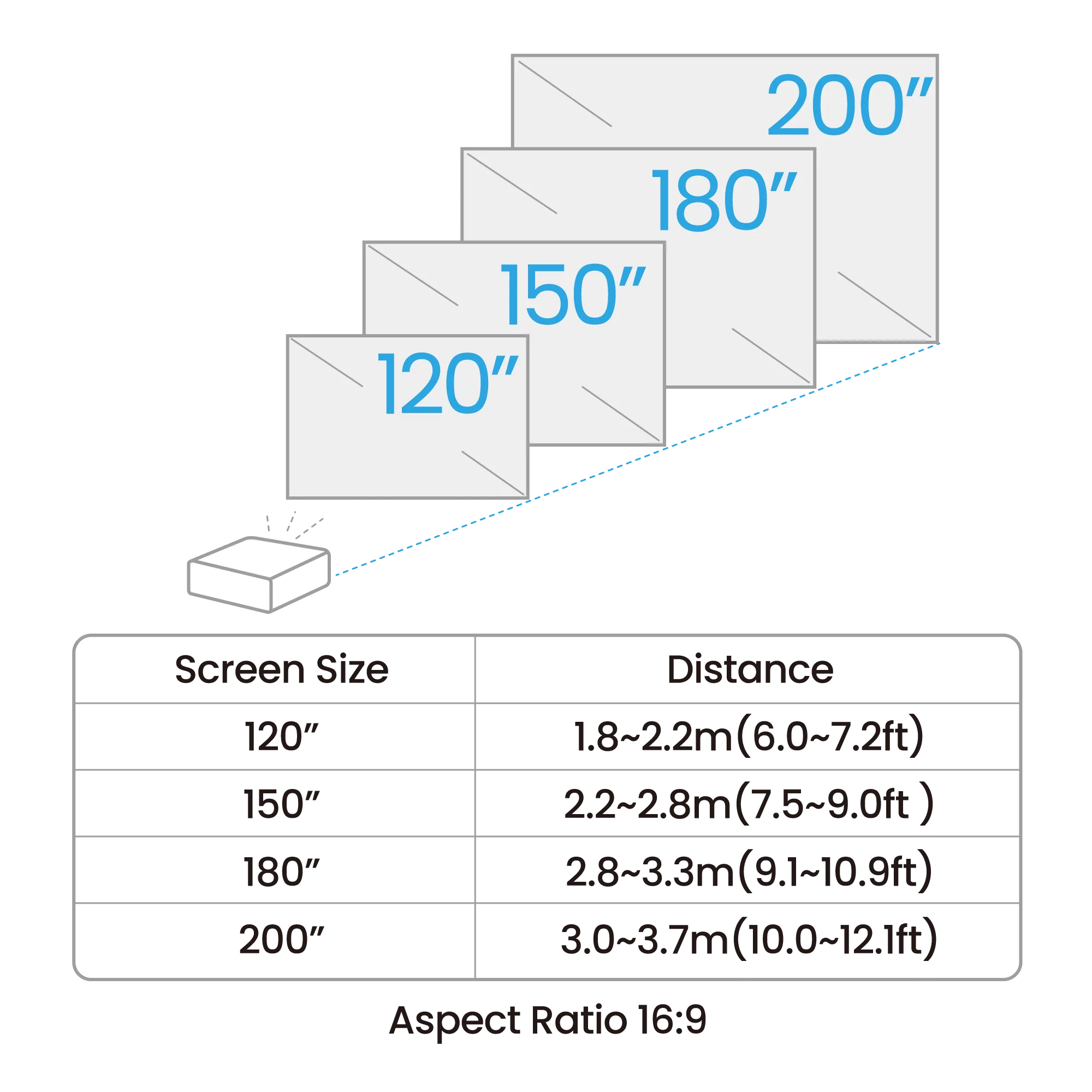

Up to 200-Inch Display

AK700ST features a professional-grade motorized lens with 1.2x optical zoom flexibility. Easily adjust screen size without reinstalling, ensuring no loss in picture quality.

Bring the Course Home

AK700ST's laser technology, paired with BenQ's expert color calibration, delivers top-quality visuals, faithfully reproducing golf course colors.

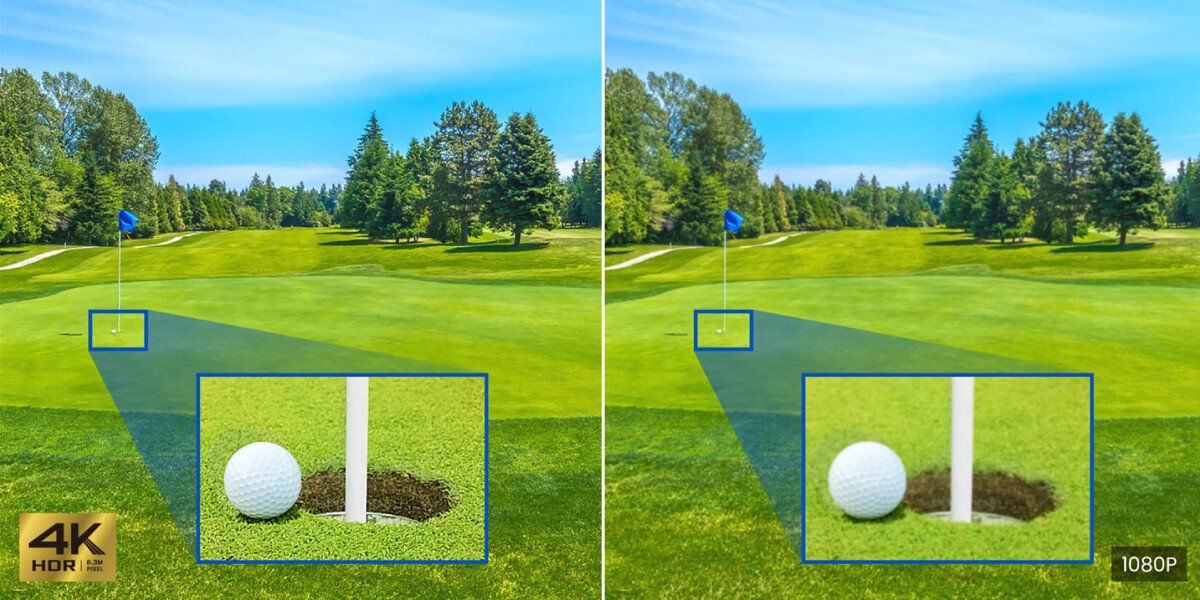

4K Detail Visibility

With true 4K resolution and 830 million pixels, AK700ST reveals every detail of the golf course terrain and grass, enhancing texture richness.

The AK700ST's laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition.

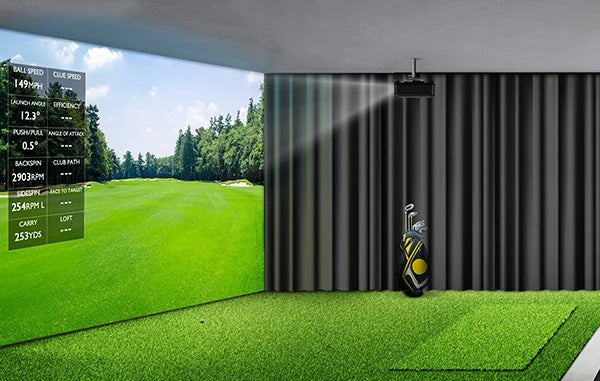

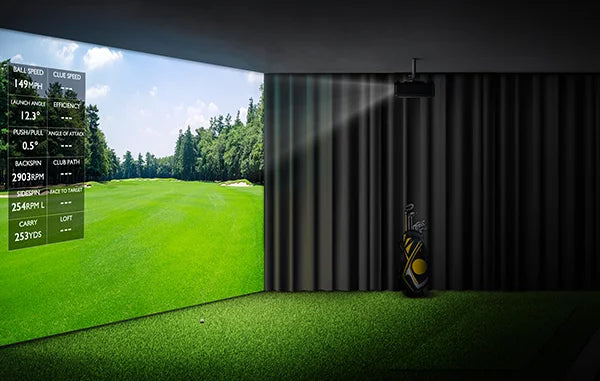

Perfect for Any Lighting

Lights On: Clear contrast and vibrant colors even in a well-lit living room.

Lights Off: Sharp contrast and vivid colors in low-light settings.

True-to-Life Golf Course Colors

Experience authentic colors from the start with BenQ's exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world.

Discover why golf mode earns designer recognition >

All Specifications

Category Specification
Brightness (ANSI lumens) 4000
Resolution 4K UHD (3840×2160)
Native Aspect Ratio 16:9
Contrast Ratio (FOFO) 3,000,000:1
Display Color 30-bit (1.07 billion colors)
Light Source Laser
Light Source Life 20000 hrs
Throw Ratio 0.69-0.83
Zoom Ratio 1.2x
Lens F/2.53(Wide), f = 10.2mm(Wide)
Projection Offset (Full-Height) 102.5%
Keystone Adjustment 3D, Vertical ± 30°, Horizontal ± 30°, Rotation ± 30°
Rec. 709 Coverage 95%
Picture Modes 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2
Input Lag 33.4 ms (1080P 60Hz)
Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency 15K~135KHz

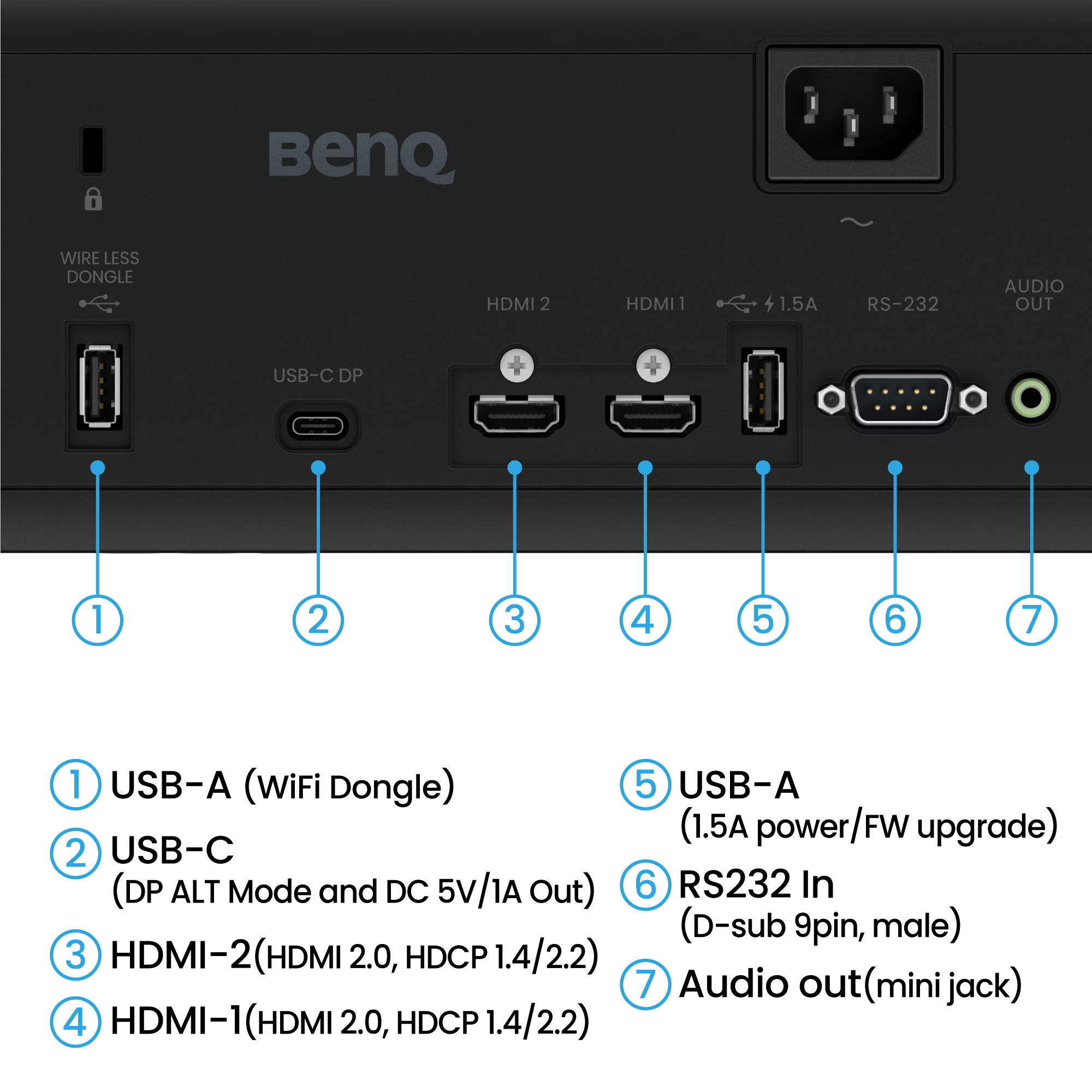

HDMI in 2x HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
USB Type A 2x USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle)
USB Type C 1x Display Port with PD out 5V/1A
RS232 in (DB-9pin) 1x
Speaker 1x 10W
HDMI Audio Return eARC, 7.1 channel
Operating Temperature 0~40℃
Power Supply AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) 192W
Stand-by Power Consumption <0.5W
Acoustic Noise (Typ./Eco.)(dB) 32db/29db
Wireless USB Dongle 5201BS
Remote Control w/ Battery RCA011
Power Cord 1x (1.8M)
Quick Start Guide 1x 21L
Warranty Card Yes

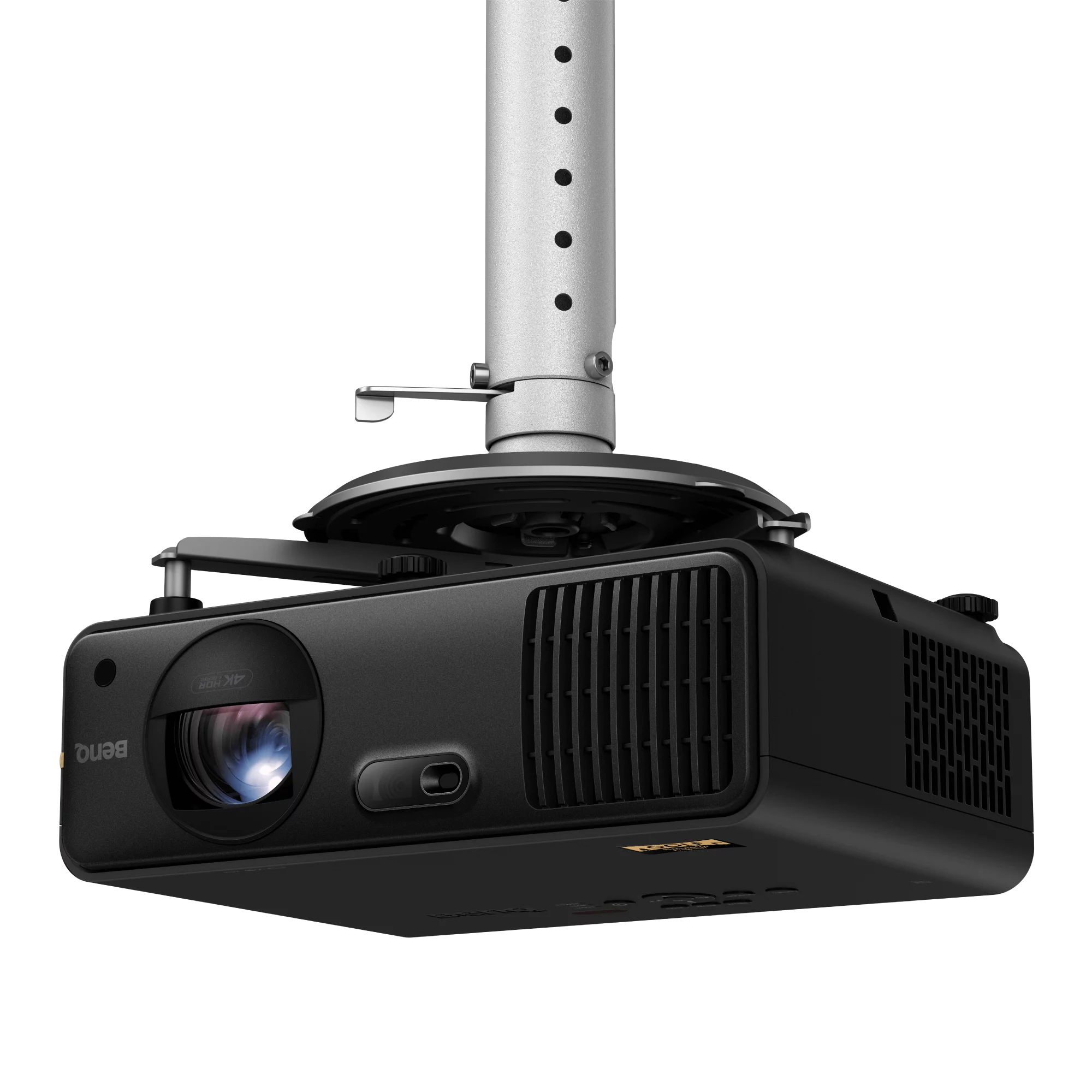

Universal Ceiling Mount CM00G3

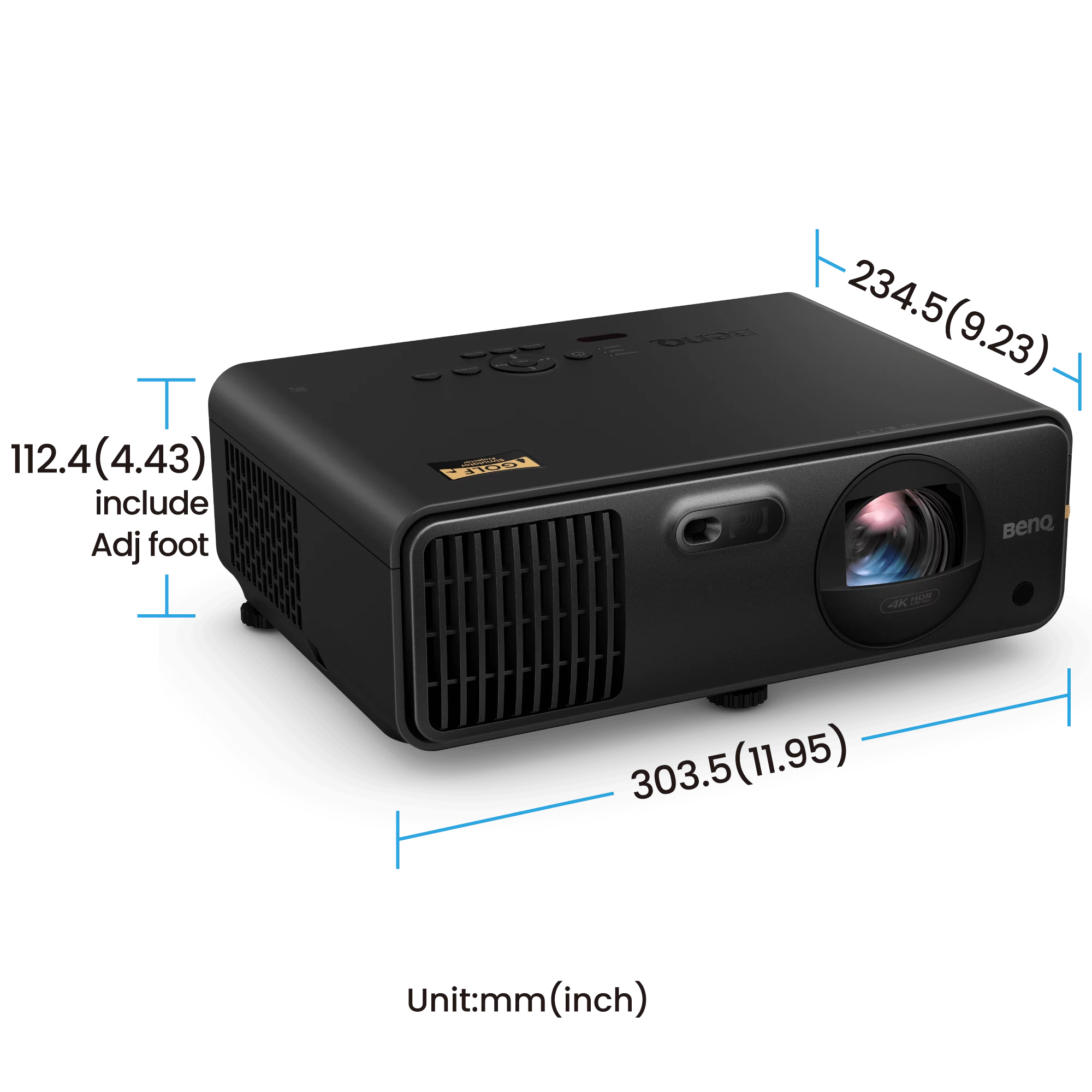

Dimensions (WxHxD) (mm) 303.5 x 112.4 x 234.5
Net Weight (kg) 3.4 Kg +/- 100g
Projection System DLP

Downloads

3D_Product Drawing

  • Version : v1.0
  • Operating System: Mac|Windows
Preview l Downloads

2D_Product Drawing (dxf)

  • Version : v1.0
  • Operating System: Mac|Windows
Preview l Downloads

User Manual

  • Language: English
Preview l Downloads

Green Technology, Efficient Performance

AK700ST reduces energy consumption by 15% compared to traditional lamp projectors and features a chassis made from post-consumer recycled materials. Plus, it's TUV and UL-certified.
