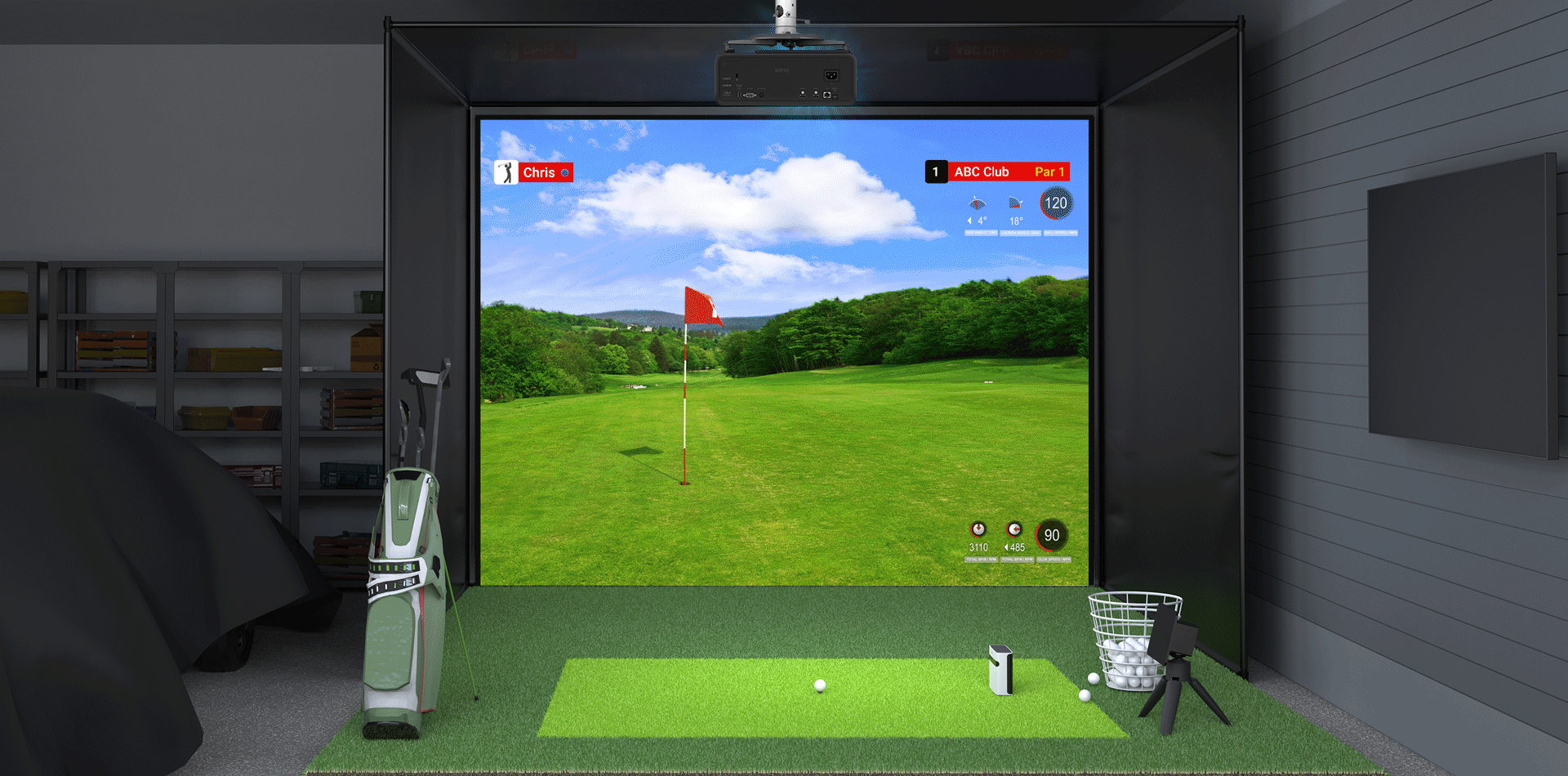

The AH500ST BenQ entry-level projector is designed for home golf simulation in small spaces. Experience immersive gameplay with vibrant colors, optimal focal length, and easy installation features.

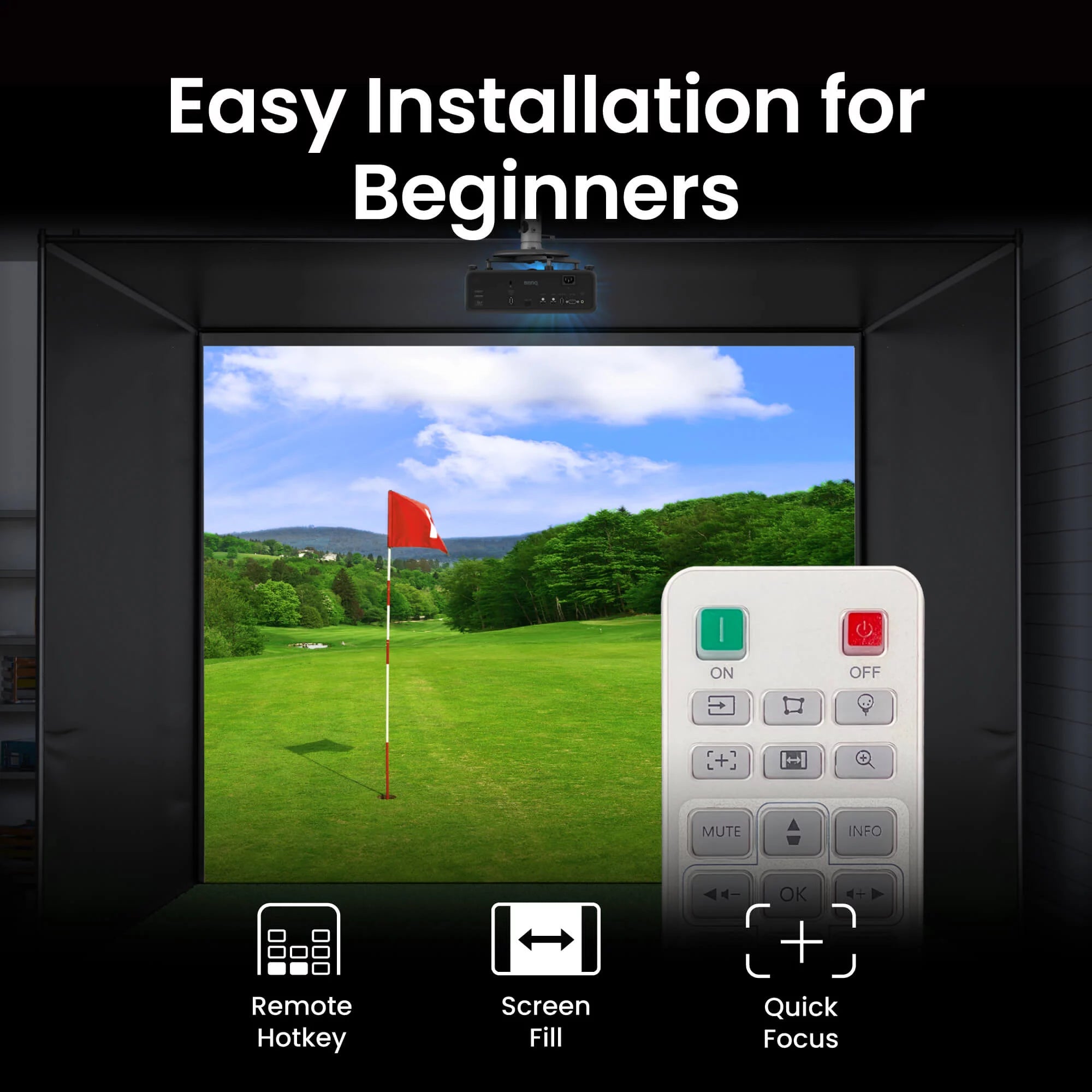

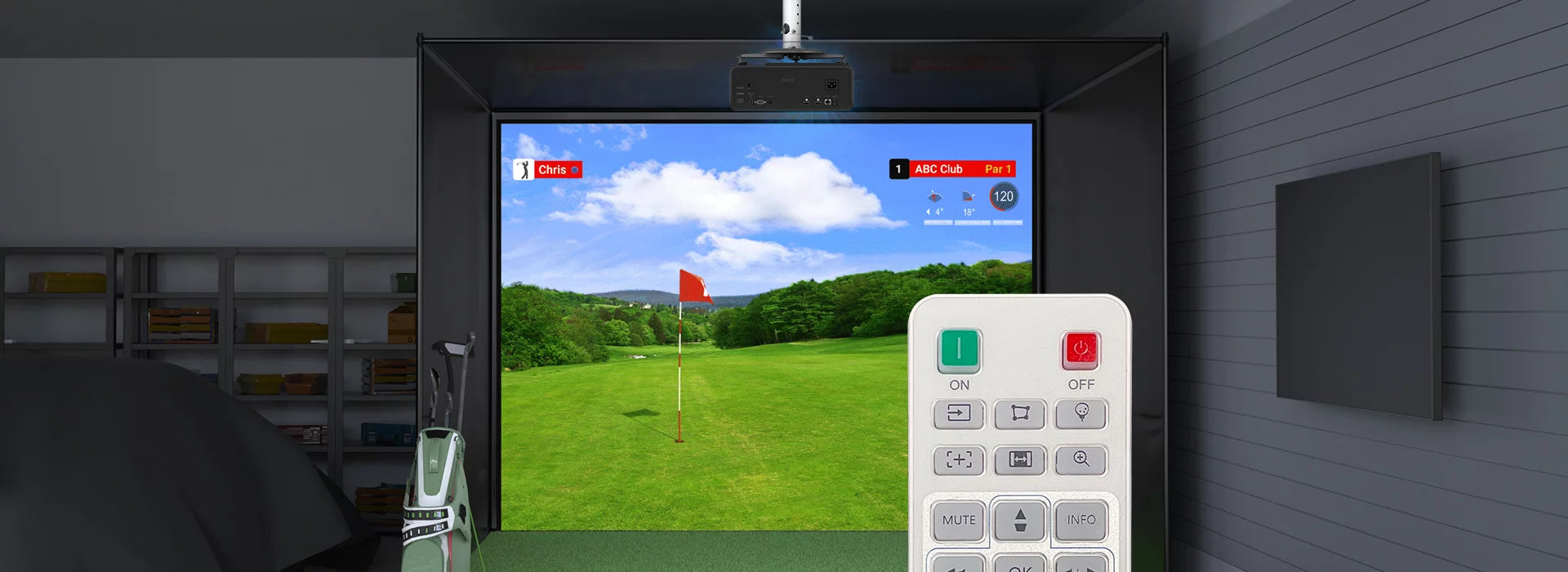

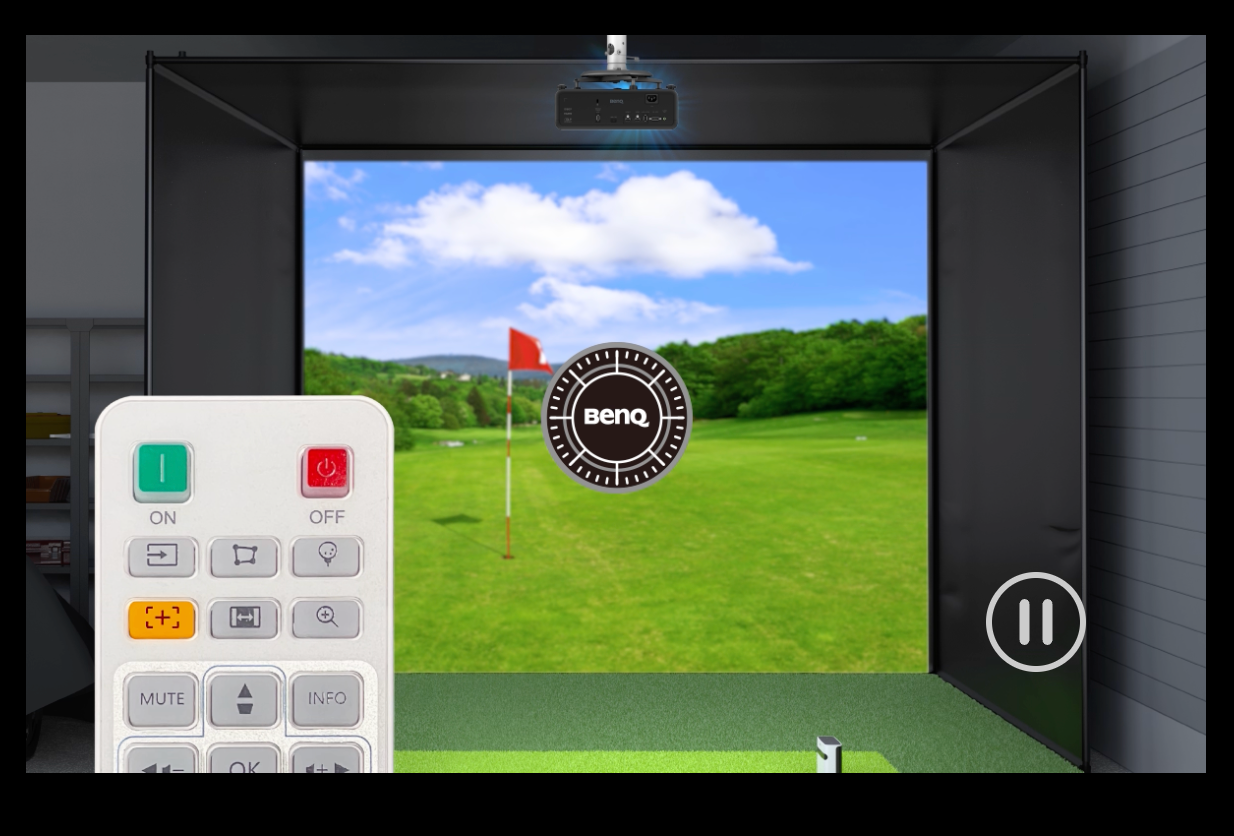

To solve complex screen ratio, alignment, and focus issues, the BenQ AH500ST integrates commonly used installation functions into a dedicated remote control hotkey, eliminating the need for repetitive adjustments.

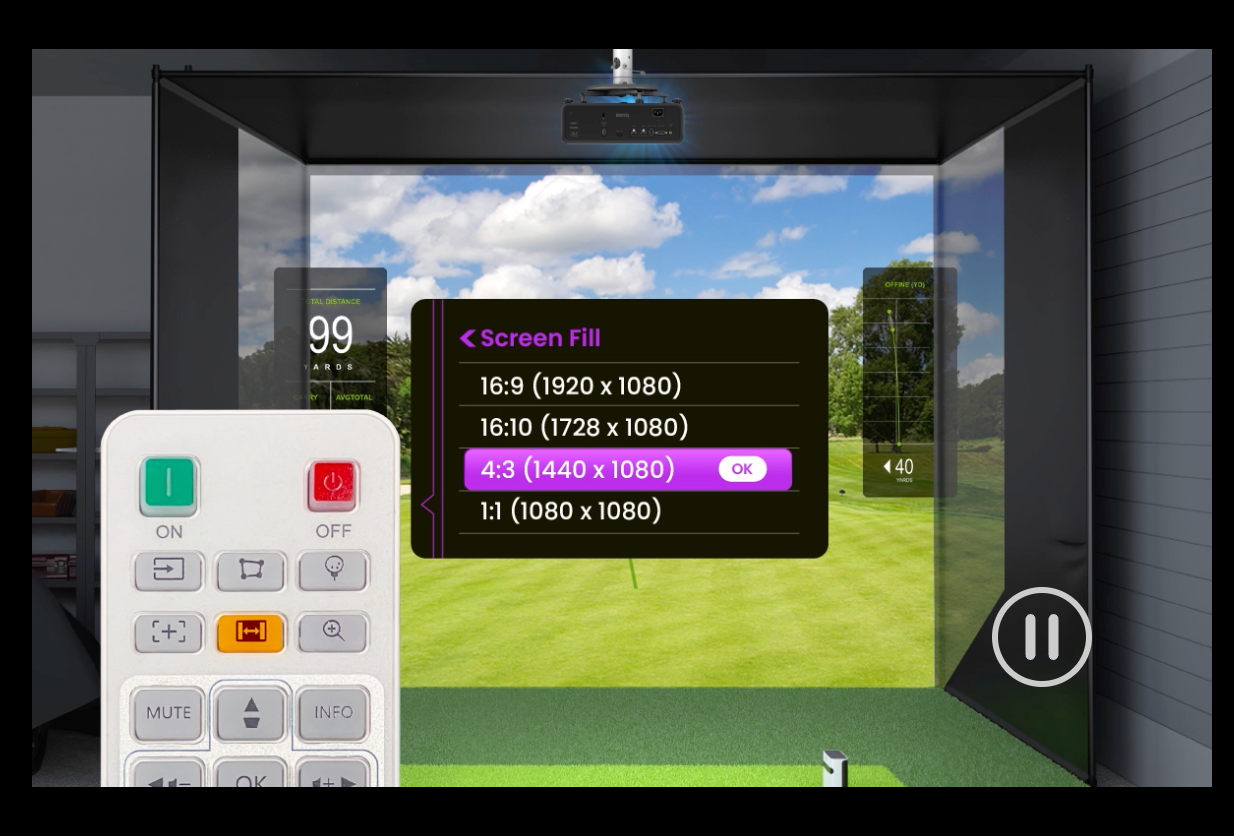

BenQ's exclusive Screen Fill feature automatically switches to 1:1, 4:3, 16:9, or 16:10 native resolutions, ensuring the image fully fills the screen without distortion.
Press the Focus button on the remote control as well as make slight adjustments to deliver sharp images.

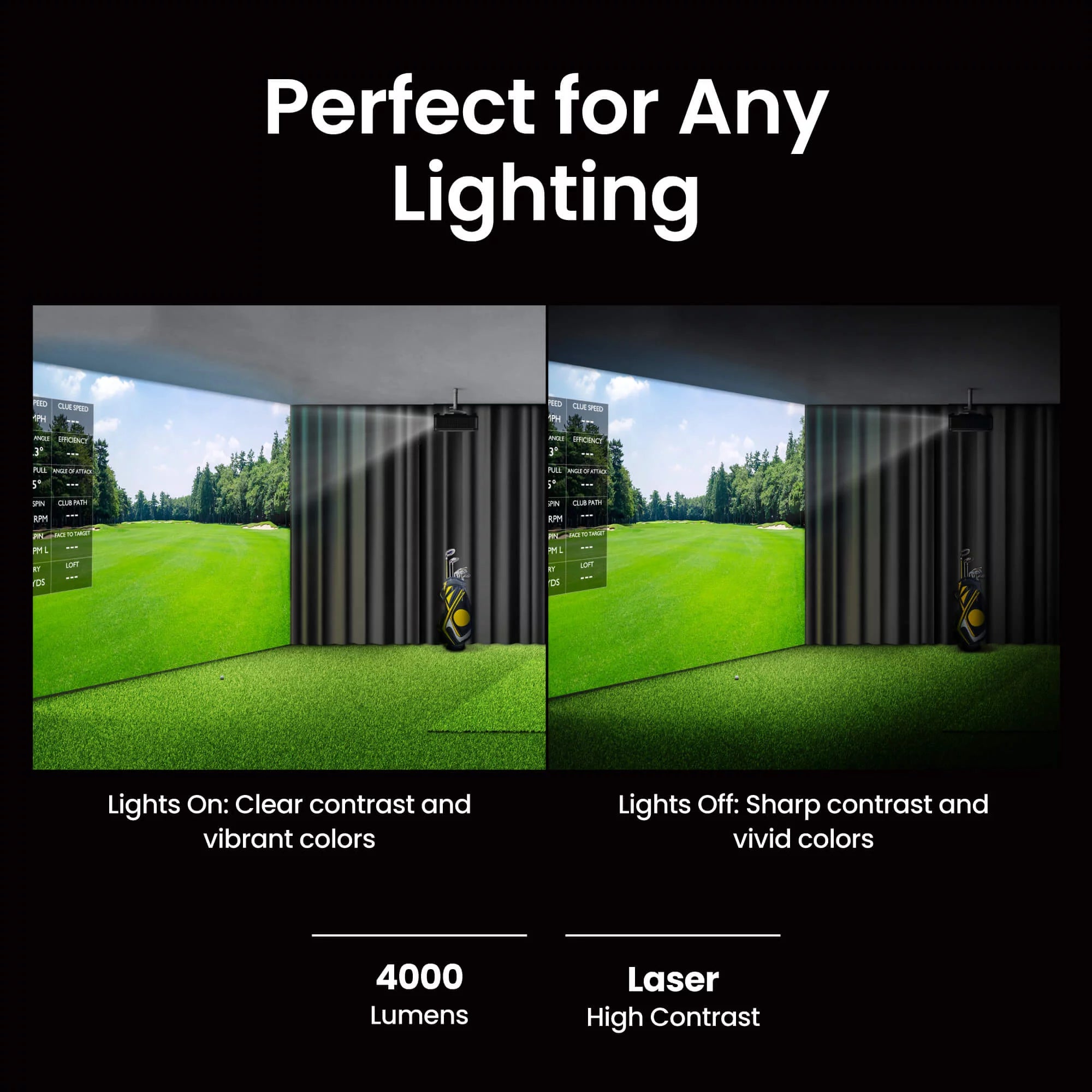

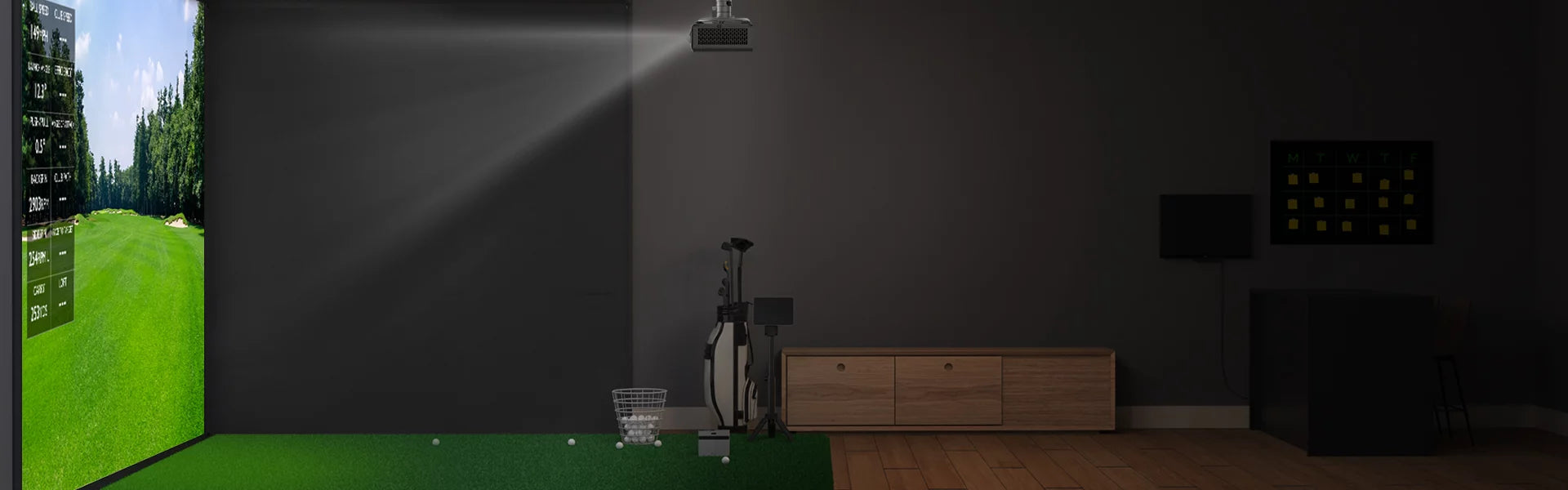

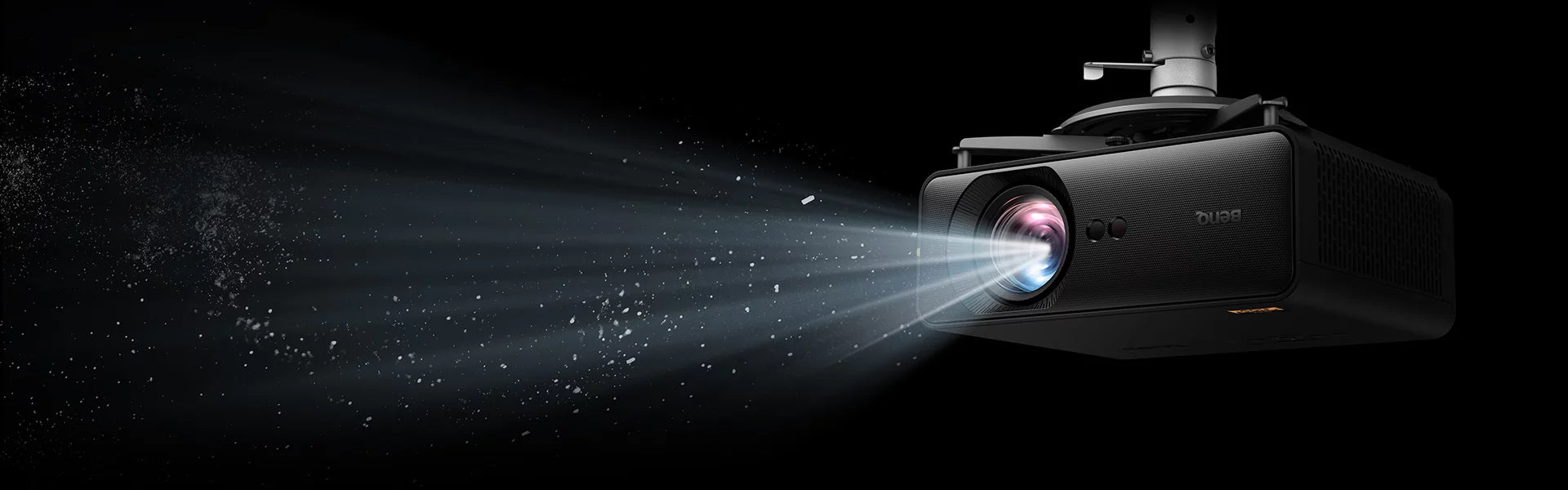

The AH500ST's laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition.
Experience authentic colors from the start with BenQ's exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world. With a default Golf Mode, presenting an exclusive experience for the golfers.
The AH500ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
| Product Specifications | |
|---|---|
| Brightness (ANSI lumens) | 4000 |
| Resolution | 1080P (1920x1080) |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Laser |
| Light Source Life | Normal: 20,000 hrs; ECO: 38,000 hrs |

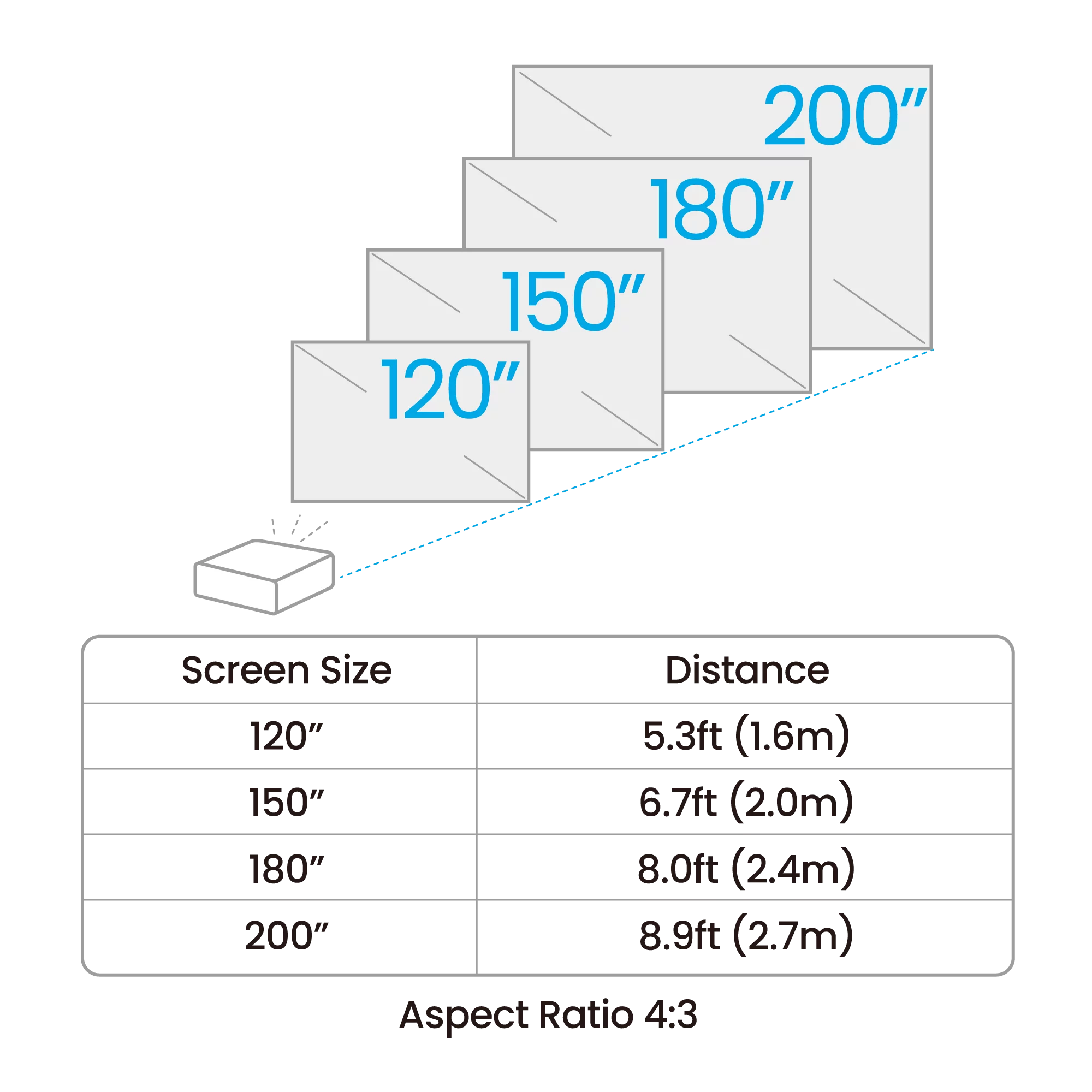

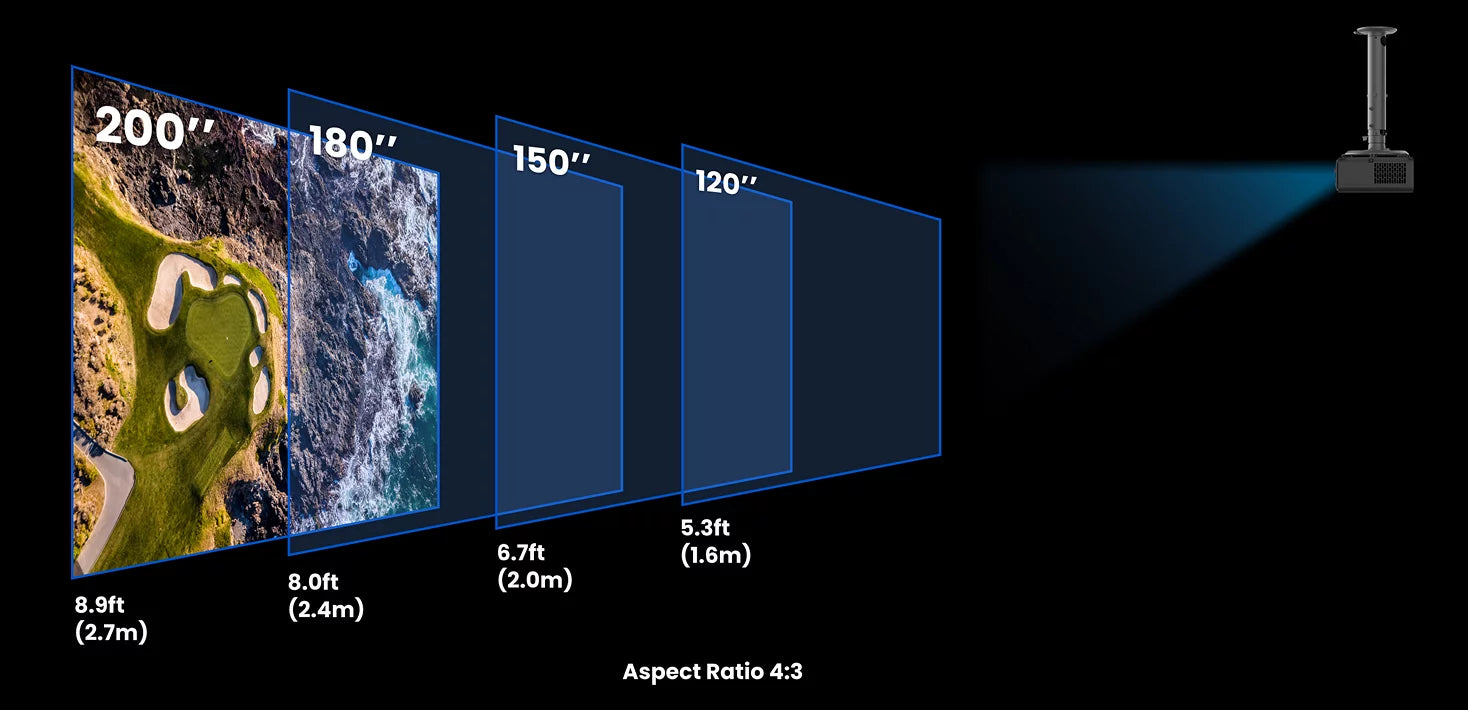

| Throw Ratio | 0.499 |
| Zoom Ratio | Fixed |
| Lens | F#=2.8 f=7.46mm |
| Projection Offset | 112% |
| Keystone Adjustment | 2D, Vertical ±30°; Horizontal ±30° |
| Rec. 709 Coverage | 83% |
| Picture Modes | 3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2 |
| Input Lag | 16.7 ms (1080P 60Hz), 8.3 ms (1080P 120Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23~120Hz |

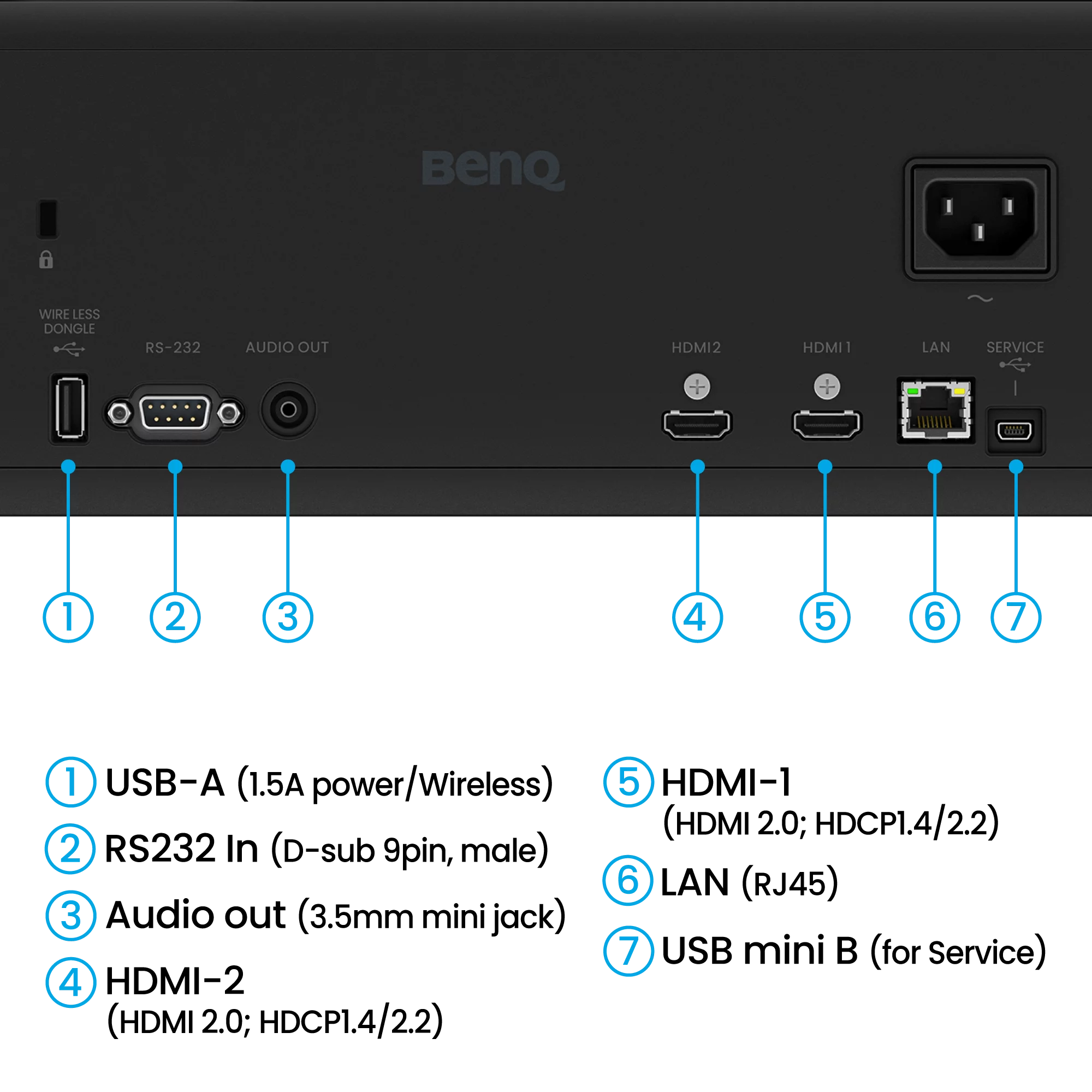

| I/O Interfaces |
HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2) LAN (RJ45): x1 USB Type A: x1 (2.0/Wireless Dongle) USB Type Mini B: x1 (service) RS232 in (DB-9pin): x1 |
| Speaker | 10W |
| Audio Out | 3.5mm Mini Jack |
| Operating Temperature | 0~40℃ |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Power Consumption | Typical: 250W@110Vac; Stand-by: <0.5W |
| Noise Level | 35dB (Typ.), 32dB (Eco) |
| Accessories |
Wireless USB Dongle (Optional) Remote Control w/ Battery Power Cord (by region) Quick Start Guide Warranty Card (by region) Lens Cover |

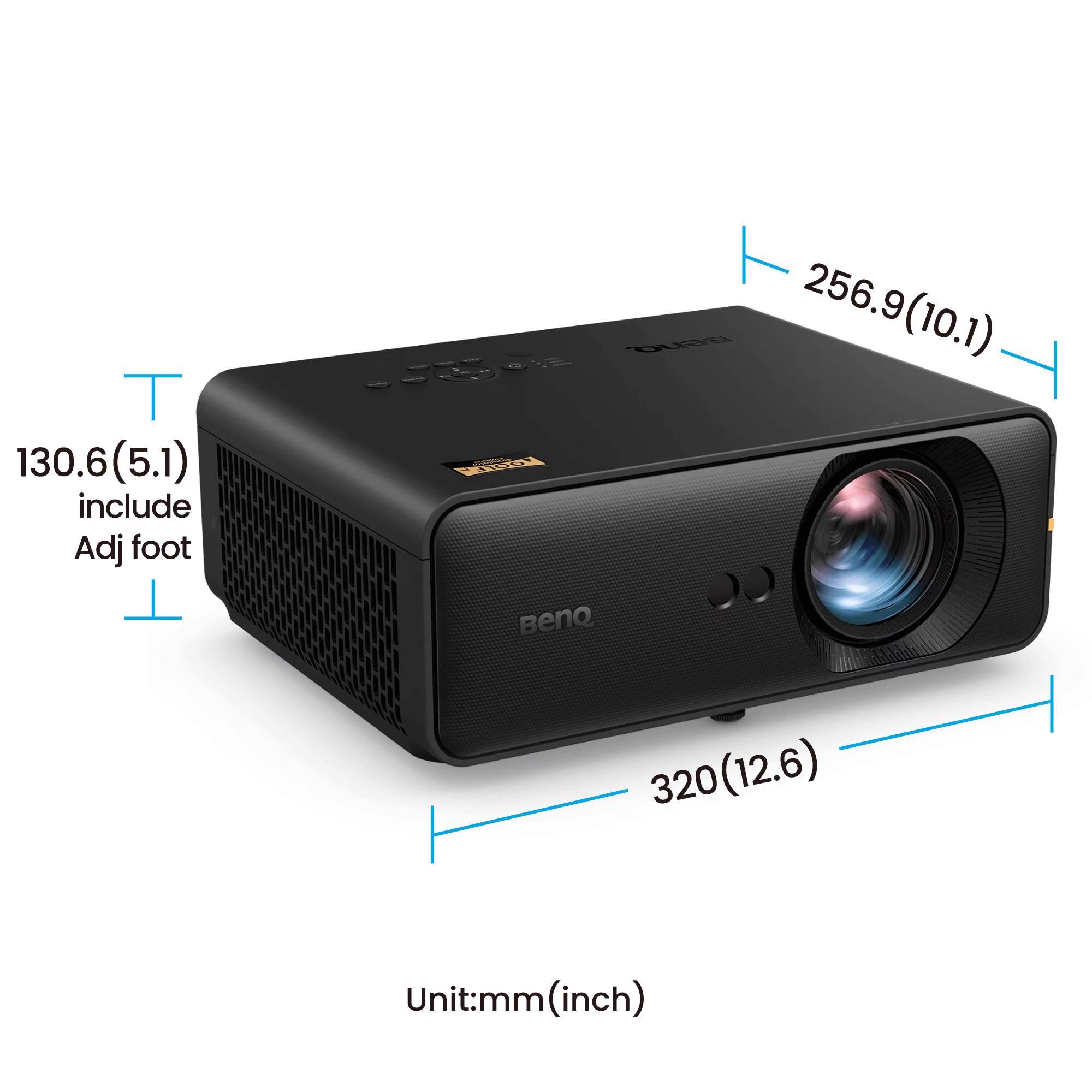

| Dimensions (WxHxD) | 320.0 x 130.6 x 255 mm |
| Net Weight | 5.1 kg (11.2 lb) |
| Projection System | DLP |
Yes. When setting the remote control, please input the [custom code + IR code] or [IR code + custom code] based on the instruction on the remote control. The custom code for BenQ is 0X30. For IR code, please refer to the user manual.
After "Reminder Message" option is switched off in OSD, the following messages will stop being displayed:
- All signal searching…
- No signal
- (Source) Source searching…
- (Source) Source detected
- Auto adjusting…
- Signal status(Source information menu)
- ECO BLANK/No source detected
- Out of range
- Best resolution
Please refer to the below video for instructions on how to replace a projector lamp and reset the lamp life timer on BenQ projectors.
Learn more
The projector can be muted using one of the following settings -
1. OSD > System setup > audio settings > mute
2.. Mute key on remote
The mute function will reset to default (Off) when the projector is restarted, which means audio will be on.
Therefore, if you wish to mute the projector permanently, please turn the audio volume down to 0. Volume levels do not reset for power cycles or restarts.
It is normal to have some dust on the lens surface. Please refer to the below video for a guide to cleaning your projector's lens.
Learn more
For BenQ projectors designed for general home entertainment and business use, we recommend powering off the projector for 2-3 minutes after every 12 hours of constant use for longer lasting reliability and maximized projector lifespan. BenQ professional projectors designed with corresponding industrial standards can be used continuously for more than 12 hours and do not require a power cycling process as our home and general-use business projectors do. If you have any questions, please contact your local BenQ customer care team for further assistance. Thank you.
Please follow below steps for troubleshooting:
(1) Check if the remote receiver is turned off by accident in OSD. It should be turned to Front/Top/Front+Top.
(2) Check if the batteries are out of power. Replace both of the batteries with new ones.
(3) Make sure you are not too far away from the projector. Stand within 7 meters from the projector.
(4) Remove the obstacles between the remote control and projector.
For demo, please refer to the tutorial video
For BenQ projectors designed for general home entertainment and business use, we recommend powering off the projector for 2-3 minutes after every 12 hours of constant use for longer lasting reliability and maximized projector lifespan. BenQ professional projectors designed with corresponding industrial standards can be used continuously for more than 12 hours and do not require a power cycling process as our home and general-use business projectors do. If you have any questions, please contact your local BenQ customer care team for further assistance. Thank you.
Yes. When setting the remote control, please input the [custom code + IR code] or [IR code + custom code] based on the instruction on the remote control. The custom code for BenQ is 0X30. For IR code, please refer to the user manual.
After "Reminder Message" option is switched off in OSD, the following messages will stop being displayed:
- All signal searching…
- No signal
- (Source) Source searching…
- (Source) Source detected
- Auto adjusting…
- Signal status(Source information menu)
- ECO BLANK/No source detected
- Out of range
- Best resolution
Please refer to the below video for instructions on how to replace a projector lamp and reset the lamp life timer on BenQ projectors.
The projector can be muted using one of the following settings -
1. OSD > System setup > audio settings > mute
2.. Mute key on remote
The mute function will reset to default (Off) when the projector is restarted, which means audio will be on.
Therefore, if you wish to mute the projector permanently, please turn the audio volume down to 0. Volume levels do not reset for power cycles or restarts.
It is normal to have some dust on the lens surface. Please refer to the below video for a guide to cleaning your projector's lens.
