Golf Simulator Enclosure - Series 8

Sale price$3,195.00 Regular price$3,995.00
Save $800.00
Options:Simulator Series 8 Bay (Without Mat)
Quantity:



Used by Flightscope, Trackman, ForesightSports, Skytrak and many more simulators and launch monitors with our Sim Series Golf Enclosure Bays.

The Net Return™ introduces its new Simulator Series Golf Practice Net. Push Button Quick Colour Connect Setup, Compact Design, Floating Polyester Screen and can be used with any Golf Simulator Software.

Each and every Simulator Series Practice Net is premium handcrafted quality and Made in the USA.

  • * Lightweight, Rugged, 1.5" Tubular Aluminium Frame
  • * Commercial Grade, UV Black Polyester Netting (Not Nylon)
  • * Large, Stainless Steel Push Buttons
  • * Floating Display / Polyester Impact Screen

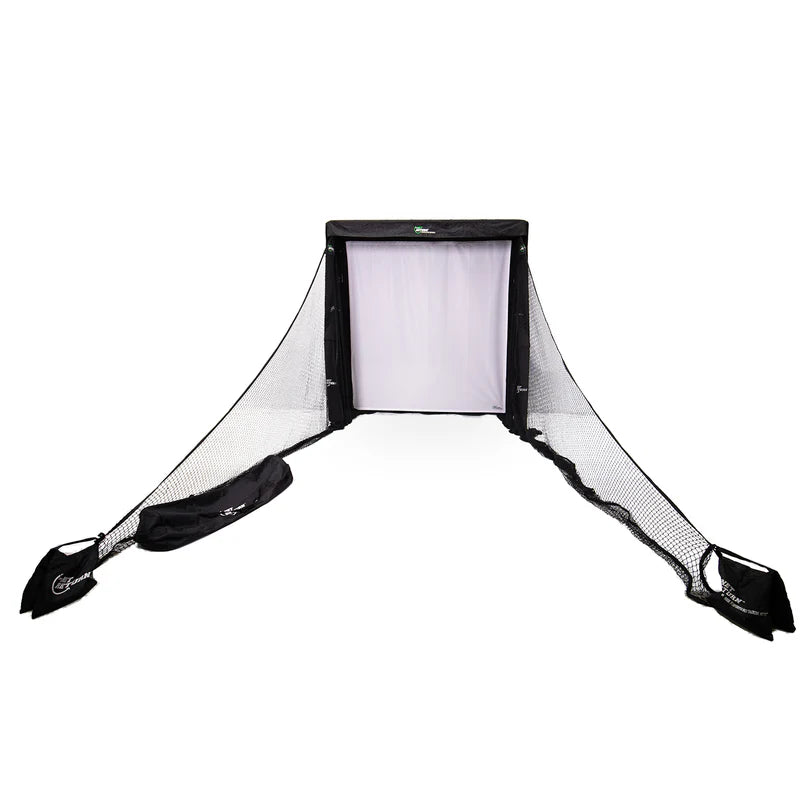

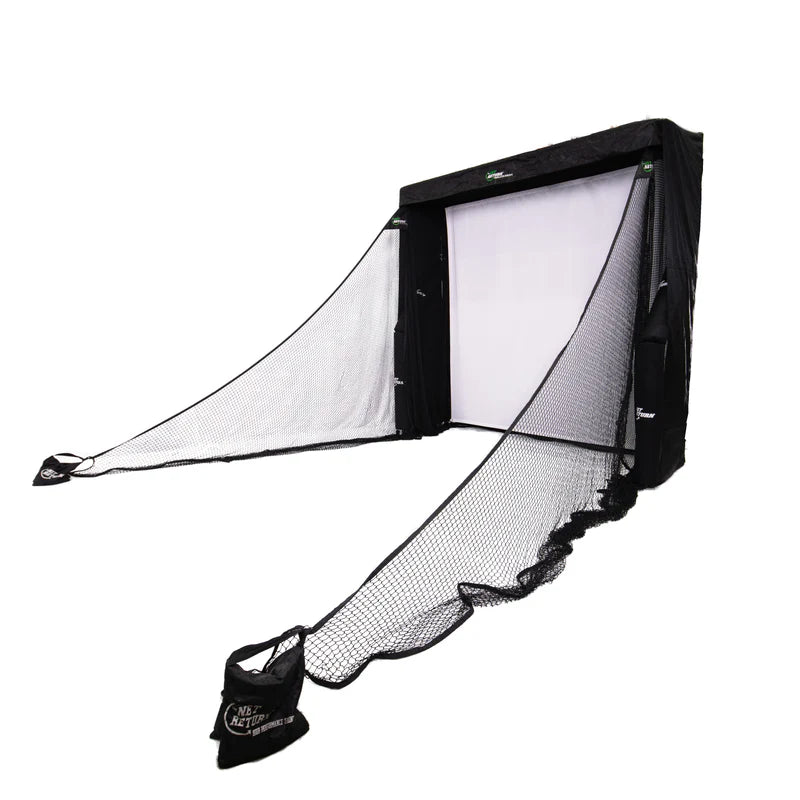

  • * Side Barriers for the Ultimate in Safety
  • * Rear and Side Black Nylon Valences

One Person Setup in Under 45 Minutes...

  • * Push Button Assembly
  • * Quick Colour Connect System™
  • * Sleeved Net - Always Stays Sleeved...
  • * Watch our Assembly Video shown below

What's Included

Sim Bays -

    Framing - High gloss, black aluminum, powder-coated frame.

    Valance - Enhances the projector image by darkening the screen.

    Netting - Entire bay is sewn with our high impact netting

    Screen - Floating super white HD screen that absorbs sound and minimizes ball rebound.

    Side Barriers -

    Ensures stray balls remain in the hitting area for maximum protection.

    *Call us to help you with a full package set up*

        Simulator Series Specifications...
        • - Frame Height: 8'10" (Rear Display Bar) * With Projector Mount Kit Installed Height Increases to 9 ft / 275cm
        • - Frame Height 8ft 10" (Front Horizontal Tubing) / 269cm
        • - Frame Width: 8ft / 244cm
        • - Frame Depth: 3' 6" / 107cm
        • - Unit Weight: 58 lbs. (With Projector Mount Kit 85 lbs.)
        • - With The Projector Mount Kit Accessory Added - Max. Extension of arm 5'9" from screen / with arm compressed 4'2" from screen
        • - Max Projector Weight on Projector Mount Kit 12 lbs.
        • - The actual Simulator Series Screen is 100" Tall x 87" Wide (8'3" x 7'2"). Bottom Left Corner to Upper Right Corner is - 131.5" (10' 9")
        • - In our Simulator Series video we used a ViewSonic Ultra Short Throw Projector. ViewSonic Model #pjd6683ws at a 4:3 Aspect Ratio. This Model has been discontinued.
        • We now recommend the Viewsonic Projector Model#PJD6552LWS (This is a Short Throw Projector weighing approx. 8 lbs.)
        • Optoma GT1080 HDR short throw projector
        • - You will want to use a 4:3 Aspect Ration rather than a 16:9 Aspect Ratio due to the squareness of our screen.
          • To test the exact size of the picture that will show up on the Simulator Series screen with your projector model, consult the manufacturers projector distance calculator. This allows you to plug in the projector model you are using, distance from screen, aspect ratio, etc. providing you with an exact picture size ahead of time.
          • Below is a link to a generic projector distance calculator, from Projector Central for you to use as an example - www.projectorcentral.com/projection-calculator.cfm
          • https://www.optoma.com/projectioncalculator/

            1. Use the GT1080 (discontinued model) to calculate as a Short throw
            2. Select desktop or ceiling mounting option
            3. Select you rAspect Ratio. For The Net Return sim screens use 4:3
            4. Select your room size settings
            5. Move the Console to the desire projection calculation you want to achieve
            6. Screen shot to save your settings for reference during installation.
          Satisfaction Guaranteed...
          • * 30 Day Money Back Guarantee (less shipping and handling)
          • * 3 Year Warranty

          Complete Protection

          Sewn with proprietary high-impact netting to withstand ball speeds of up to 250 MPH.

          What's Included

          Included

          Framing - High gloss, black aluminum, powder-coated frame.

          Valance - Enhances the projector image by darkening the screen.

          Netting - Entire bay is sewn with our high impact netting

          Screen - Floating super white HD screen that absorbs sound and minimizes ball rebound.

          Ensures stray balls remain in the hitting area for maximum protection.

          Sim Series Comparison

          Dimensions and Specifications

          Product Specifications:

          Width: 8'

          Height: 8'10"

          Depth: 3'6"

          Minimum Room Dimensions:

          Width: 10'

          Height: 9'

          Length: 14'

          The Sim Bay can be placed 6" from a wall

          Ability to make a full swing in the space varies based on each person's height and club length. Additionally, depth needed varies by launch monitor, ranging from 14-22 feet.

          Product Specifications

          Width: 10'

          Height: 8'10"

          Depth: 3'6"

          Minimum Room Dimensions:

          Width: 12'

          Height: 9'

          Length: 14'

          The Sim Bay can be placed 6" from a wall

          Ability to make a full swing in the space varies based on each person's height and club length. Additionally, depth needed varies by launch monitor, ranging from 14-22 feet.

          Product Specifications

          Width: 12'

          Height: 8'10"

          Depth: 3'6"

          Minimum Room Dimensions:

          Width: 14'

          Height: 9'

          Length: 14'

          The Sim Bay can be placed 6" from a wall

          Ability to make a full swing in the space varies based on each person's height and club length. Additionally, depth needed varies by launch monitor, ranging from 14-22 feet.
